Startseite /Produkte/Wiederverwendbares Video-Laryngoskop/Plastic Portable Reusable Visual Laryngoscope

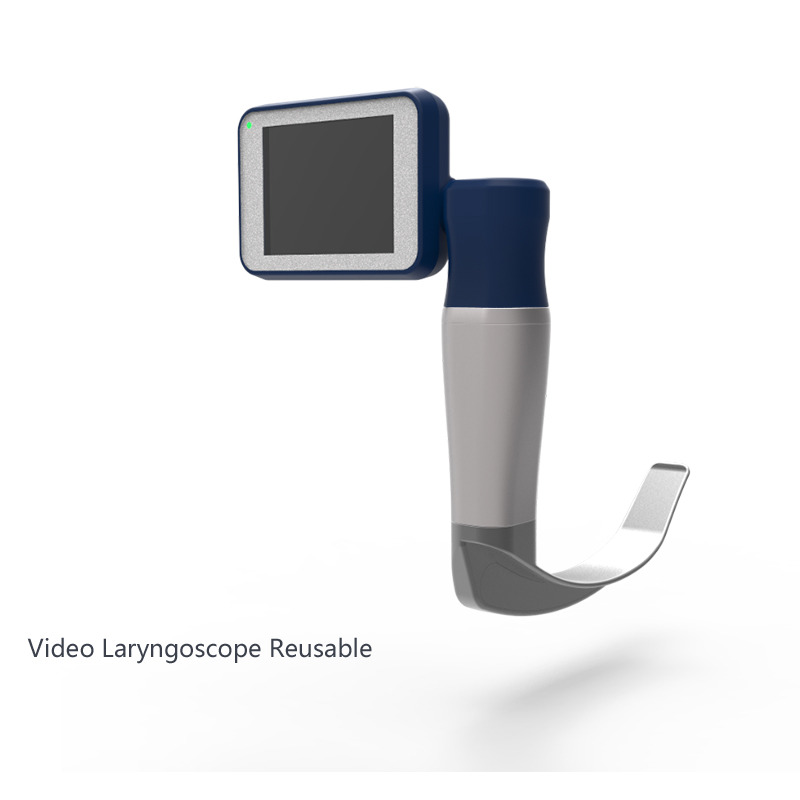

Plastic Portable Reusable Visual Laryngoscope

1.0 Sets
MOQ
Plastic Portable Reusable Visual Laryngoscope
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Model Number: BD-DF1
Power Source: Manual
Warranty: 1 Year
After-sale Service: Online technical support
Material: Plastic, Steel, Stainless Steel Blades
Shelf Life: 1years
Quality Certification: ce
Instrument classification: Class II
Safety standard: EN 149 -2001+A1-2009
Name: Portable reusable video laryngoscope
Blade size: Mil0, Mac1,Mac2,Mac3,Mac4, D-Blade.
Display: 3inch LCD
Resolution: 640*480 (RGB)
Weight: Weight
Battery Type: Rechargable lithium battery
Battery working time: >240min
Charging time: <2(hrs)
Viewing angle: ≥60 degree
Grundinformation
Zertifizierung: ce
Model Number: BD-DF1
Zahlung und Versand AGB
Packaging Details: Special instrument case
Supply Ability: 10000 Piece/Pieces per Year
Produkt-Beschreibung
Product Description

Portable reusable video laryngoscope

Application range: Routine and difficult tracheal intubation, Could be used for doctors in Anesthesia, ICU/NICU/CCU, Operating Room, Emergency Rescue, Ambulance,ENT etc. Clinical training and teaching of tracheal intubation.

Features:

* Familiar technique with Macintosh blade,direct and video visualization,gain the capabilities of two device in one ,additional difficult airway blade optional. Can cope with a majority of airway intubation. * it with take photos and video recording function, could record the case for sharing and teaching purpose. * Narrow blade profile,intubation feasibility improved for some samll mouth opening. * 3.0 inch monitor with 1080*710 p high resolution, .doctor can see glottis clearly * CE, ISO13485 and FDA approved * Blades: Mil0, Mac1, Mac2, Mac3, Mac4, D-Blade. * 6 sizes blades will be applicable for all levels patients intubation. * Fully premium quality surgical grade stainless steel (non-magnetic). * It is easy clean and disinfect, just need Cidex to immerse the blade. * Can be equipped by operating room,Emergency room ,ICU and ambulance.

Blade parameter size:

Blade
Mill0
MAC1
MAC2
MAC3
MAC4
D blade
Application
Neonate
Pediatric
Small Adult
Adult
Large Adult
Difficult airway
Intubation Inner Diameter
2.5-4.0mm
4.0-5.0mm
5.0-6.0mm
6.0-9.0mm
7.5-10.0mm
6.0-10.0mm
Length (cm)
8.2
10.45
12.11
14.25
16.08
13.27
Sterilize Method
2.0%Glutaral fully soak for 10 minutes
Or 0.5%-0.6% Cidex OPA for more than 5 minutes
Specification
Name
Portable reusable video laryngoscope




Machine
Display
3inch LCD
Resolution
640*480 (RGB)
Viewing angle
≥60º
Power
<2W
Display front and back rotation Angle
0 º~130 º
Weight
225g

Camera
Illuminance
≥150 LUX
Resolution
1280*720 px


Image/Video function
Image/ Video function
Yes
Output
USB output, Easy to storage and establish image/video
Memory type
Micro SD card 8GB



Batterty
Battery Type
Rechargable lithium battery
Capacity
1350mAh
Cycle life of battery
>500 times
Battery working time
>240min
Charging time
<2(hrs)
Packing & Delivery

Packing:  Sterilized PE pack

Carton:  Customized.
